Intelligent Flat Glass Tempering Furnaces

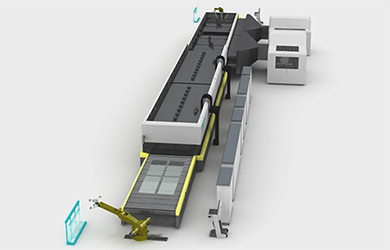

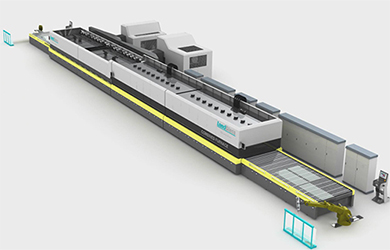

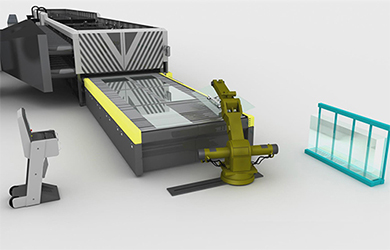

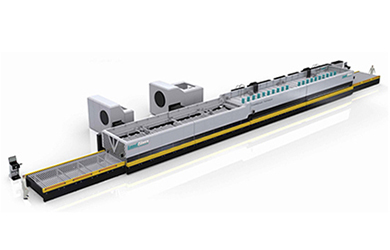

LD-AT0 JetConvection Plus Combined Flat Glass Tempering Furnace
Architecture&Furniture, Automobile Industries, Household Appliances and Solar Power Industries, etc.
Forced convection heating on the top and bottom.
On-line and Off-line Low-E (E≥0.01) Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.
Chat Online
- Product Introduction
- Technical Features
- Technical Parameters
- Customer Case
- Some markets, like the architectural or household markets, have increased the demand of high-quality tempered glass. LandGlass introduced in 2008 the combined tempering technology with two independently controlled heating furnaces to meet this increasing demand for high quality glass.
JetConvection PlusTM Convection heating plays an important role during glass heating. Air is heated in the JetConvection chamber inside the heating furnace and is blown onto the glass surfaces. Air is then recirculated and recirculated by the convection blowers into the JetConvection chamber. LandGlass JetConvection technology enhances the quality of the final product and increases productivity by ensuring an even heating, while minimizing production costs.
LD-AT Series Combined Flat Tempering Furnace is equipped with 2 heating sections, which can be installed with either AirStream or JetConvection heating technologies. The furnace can also be equipped with one or more chillers according to the quality and productivity requirements of the final product. The combination of 2 heating sections allows for an easy adaptation to each customer's needs, having the possibility to select different working modes that optimize final quality, productivity or maximum temperable size.
LD-AT0 JetConvection PlusTM Combined Flat Glass Tempering Furnace has two heating sections with JetConvection PlusTM heating technology applied on the top and bottom.This tempering furnace ensures an excellent quality and a higher performance. Glass that can be tempered includes: on-line and off-line Low-E (E≥0.01) glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc. - 1. LD-AT0 JetConvection PlusTM Combined Flat Glass Tempering Furnace has two heating sections with JetConvection PlusTM heating technology applied on the top and on the bottom; it can temper glass with the best quality.
2. Different working modes can be set in order to focus on quality, productivity or loading size.If the first heating section works as preheating furnace, it will reduce quality defects such as optical distortion, spherical bending, hot spots, white haze, etc.If both heating sections work as independent heating furnaces, it will largely increase throughput.If two heating sections work as one big heating section, it will be able to process extra large glasses.
3. Glass tempered by this tempering furnace is suitable for the architectural, furniture, household appliances, automotive and solar industry markets. The glass that can be tempered includes: on-line and off-line Low-E (E≥0.01) glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc. LD-AT0 JetConvection Plus Combined Flat Glass Tempering Furnace Types Max.dimensionMin.dimensionGlassthicknessProductivity(loads/h)Installedcapacity(KVA)ClearglassLow-E A1636T0+ 1600X3600 150X350 2.85-19 27-30 24-26 1600 A2436T0+ 2440X3600 200X400 4-19 27-30 24-26 1400 A2442T0+ 2440X4200 200X400 4-19 27-30 24-26 1600 A2450T0+ 2440X5000 200X400 4-19 27-30 24-26 1800 A2460T0+ 2440X6000 200X400 4-19 27-30 24-26 2200 A2480T0+ 2440X8000 200X400 4-19 27-30 24-26 2800 A3050T0+ 3000X5000 300X500 5-19 27-30 24-26 2300 A3080T0+ 3000X8000 300X500 5-19 27-30 24-26 3500 Productivity is calculated on 5mm clear glass and 5 mm off-line Low-E glass (E=0.08) with 65% loadage. Actual productivity is subject to glass types, sizes and loadage. Not all types are listed here due to limited space.。
- Company
Oldcastle LocationUSA, North America Company ProfileOldcastle is the largest manufacturer of building products and materials in North America. Its tempered glass products are widely used in architectural industry, which allows it to occupy a large market share in North America. And its glass tempering furnace is produced by LandGlass. Furnace TypeLD-AT0 JetConvection Combined Flat Glass Tempering Furnace Main ProductsLaminated glass, insulating glass, fireproof glass, Low-E glass, etc.
